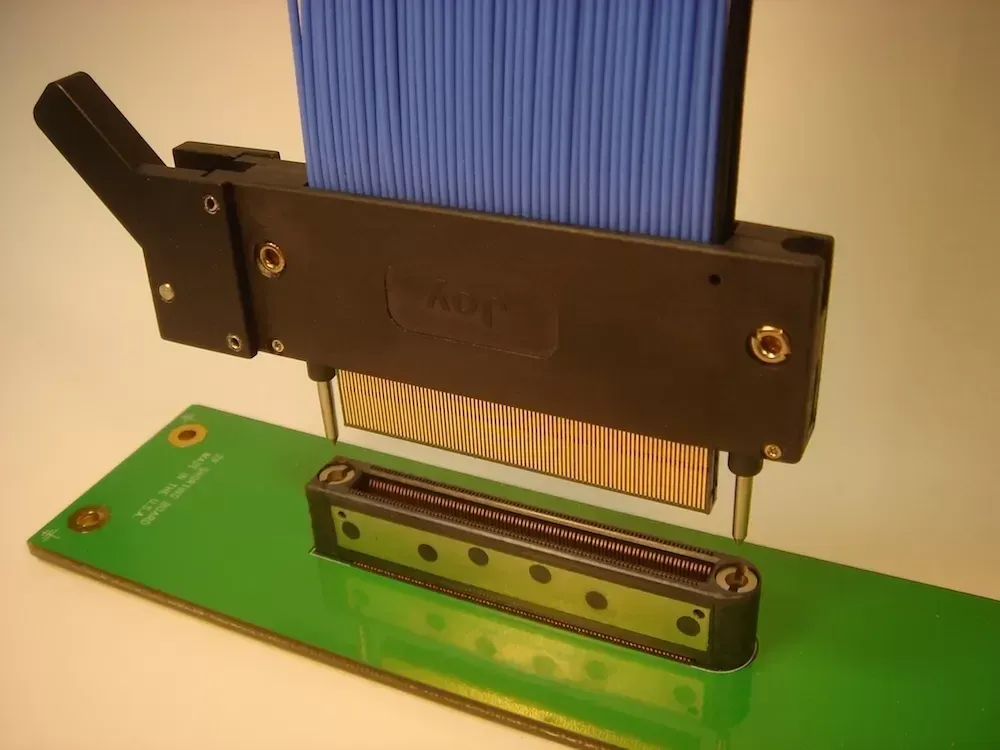

Description

Features and Benefits

• 90 Coax signals or up to 180 utility pins
• 3 GHz bandwidth
• Board mount connector uses compression tails, no soldering required
• 10,000 insertion cycles
• ZIF assures no net normal force on the mating board

Electrical Specifications

• Contact Resistance: 25 milliohms (maximum)
• Current Rating: 1.0 AMP per contact
• Insulation Resistance: >1 x 10⁹ ohms at 500

Mechanical Specifications

• Contact Material: copper alloy
• Contact Finish: 30 micro inches Gold (minimum) over 50 micro inches Nickel (minimum)
• Number of Contacts 180, .025″ centers
• Normal force: 100 grams nominal
• Dielectric Material: liquid crystal polymer
• Insertion/Withdrawal Cycles- 10,000 minimum

Environmental Specifications

• Material: UL rated 94 V-0
• Temperature Rating – -20°C to +100°C
