MMCX Plug Assembly

MMCX Plug Assembly Data Sheet

Special Web Pricing

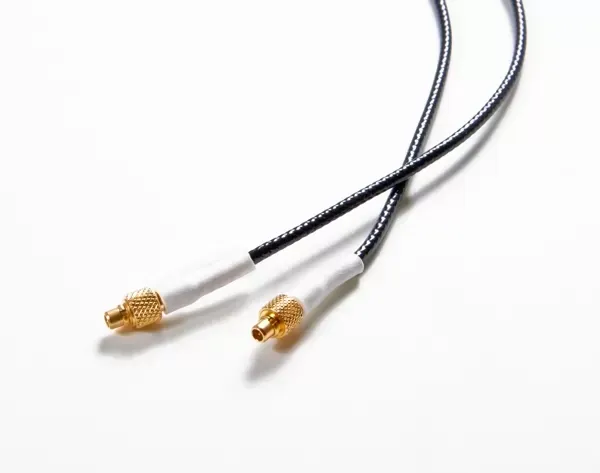

MMCX Plug to MMCX Plug on Joy Coax Type 35 or 19 Premium Air Core High Speed Coax
Quantity up to 25 pieces

Length               Price Each
12″                      $21.46
24″                      $22.01
36″                      $24.51

Consult Factory for other lengths or quantities.

Email: customerservice@joysignal.com
or call (888) 891-3551 to order.

Category:

Description

Features and Benefits

  • Joy Signal Coax Type 18 and 35, high speed low capacitance coax
  • Industry standard MMCX Connectors
  • Low loss cable termination process

Mechanical Specifications

Connector Finish:

  • Signal contact: 30µin Au minimum thickness
  • Body: 10µin Au minimum thickness
    Contact Retention:
  • 2 lbs minimum axial force

Electrical Specifications

Connector:

  • Bandwidth: 0-6 GHz
  • VSWR: 1.3 max at 6 GHz
  • Insulation Resistance: 5000 Mohm

Assembly:

  • Impedance: 50±2.5 ohms at 100pS rise time

Environmental Specifications

Temperature Rating:

  • Type 18 Coax: -55°C to + 125°C
  • Type 35 Coax: -25°C to +75°C
