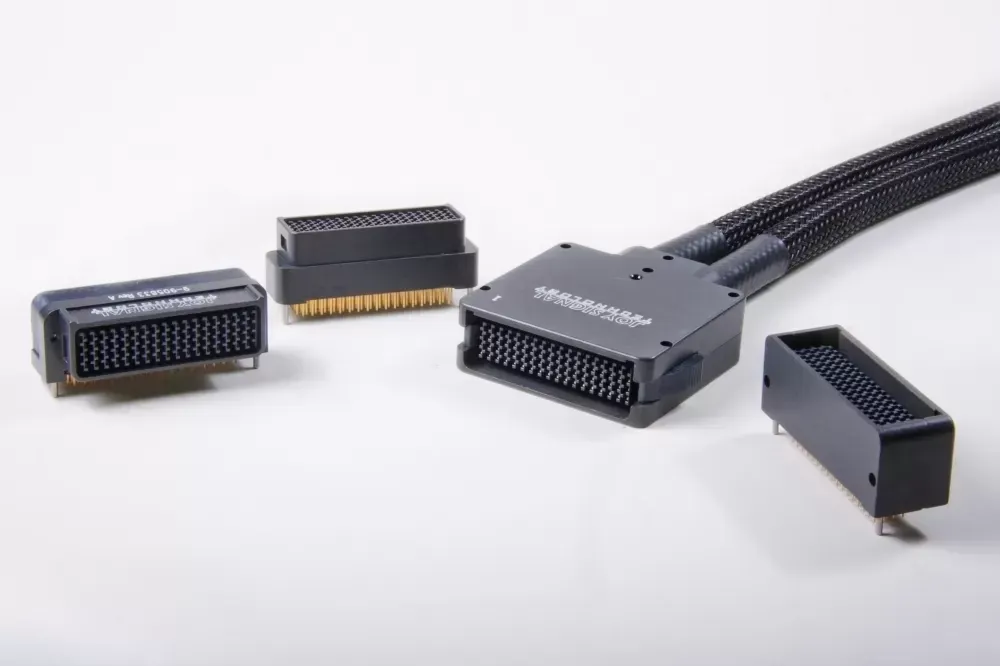

Compact Brute Connector System


  • Rugged, hard anodized aluminum shell with PTFE Mil-Spec coating
  • Contacts are protected by an LCP grid
  • Patented hermaphroditic contact for low insertion force and long life
  • Contacts are dual wipe for redundancy and high reliability
  • 140 positions available for signal, ground or power
  • Up to 1.7A/pin per contact
  • PCB mounted connectors rated 630VDC
  • Resilient LCP Quick Latch system for quick attach and removal
  • Two stainless steel alignment pins on board-mounted connections
  • Secured to PCB with two 4-40 screws
  • Available PCB-mounted connectors:
    • Vertical Male
    • Vertical Female
    • Right-Angle Male
    • Right-Angle Female
  • Female board-mount connectors for board-to-board applications
  • Cable-end connector always female
  • Vertical Male Board footprint: 2.23″ [56.6] x 0.66″ [16.8]

Compact Brute Connector System Data Sheet
