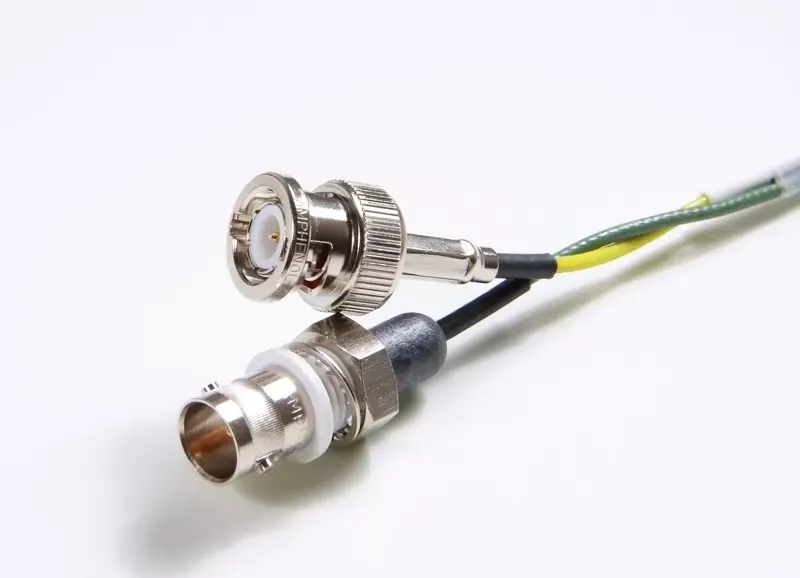

BNC Interconnects
- 50 OHM BNC Terminations
- 75 OHM BNC Terminations
Description
MATERIAL AND FINISH
- Male Center Conductor: Brass
- Female Center Conductor: Beryllium copper or phosphor bronze
- Center Conductor Finish: Silver plated
- Connector Body: Nickel plated brass
- Overmold: Black thermoplastic, UL rated 94 V-O
BNC Interconnects Termination Style Numbers
| STYLE # | TERMINATION | CHARACTERISTIC IMPEDANCE (±10%) |
| 31 | BNC cable end plug | 50 |
| 32 | BNC cable end plug | 75 |
| 33 | BNC cable end jack | 50 |
| 34 | BNC cable end jack | 75 |
| 35 | BNC front panel mount jack | 50 |
| 36 | BNC front panel mount jack | 75 |
| 37 | BNC front panel mount jack with isolated ground | 50 |
| 38 | BNC front panel mount jack with isolated ground | 75 |
| 39 | BNC rear panel mount jack | 50 |
| 40 | BNC rear panel mount jack | 75 |
